Freud Bevel Trim Bit 9/16"

Freud

Available Inventory: 1

Routing a clean, finished edge on plastic laminates

PRODUCT OVERVIEW

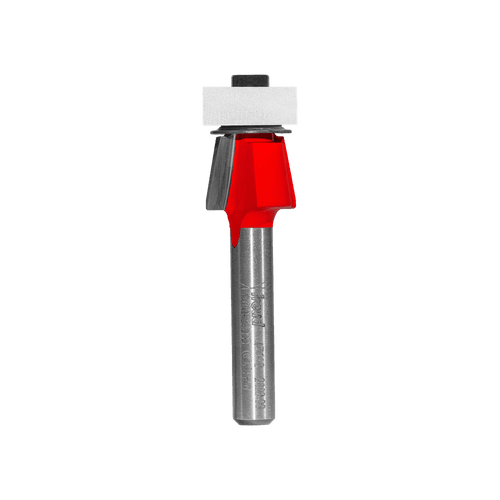

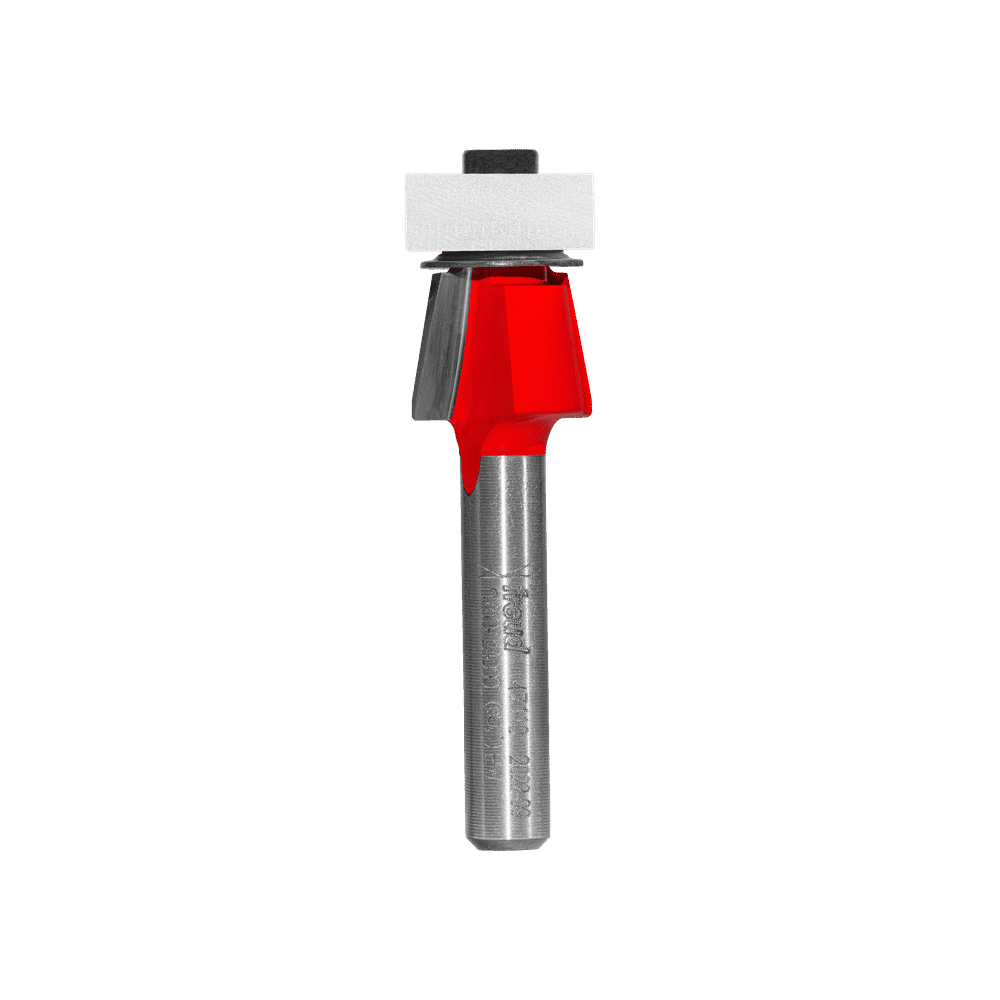

Bevel Trim Bits produce a clean, finished edge on plastic laminates with little or no filing. Choose among bevel angles from 8 degrees to 45 degrees in the 41-series bits, which also include a ball bearing guide. Or choose the solid carbide 66-100 for a 7 degree bevel in a very cost effective tool.

  • Rout a clean, smooth edge of laminates with little of no time-consuming filing
  • Cuts all plastic laminates
  • 41-Series includes ball bearing guide, 66-100 is cost-effective solid carbide
  • Use in hand-held or table-mounted routers and laminate trimmers

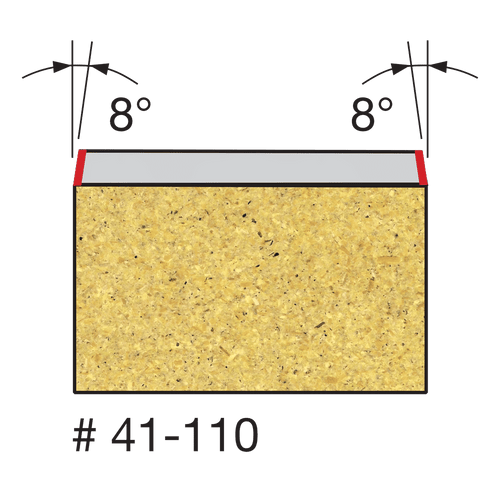

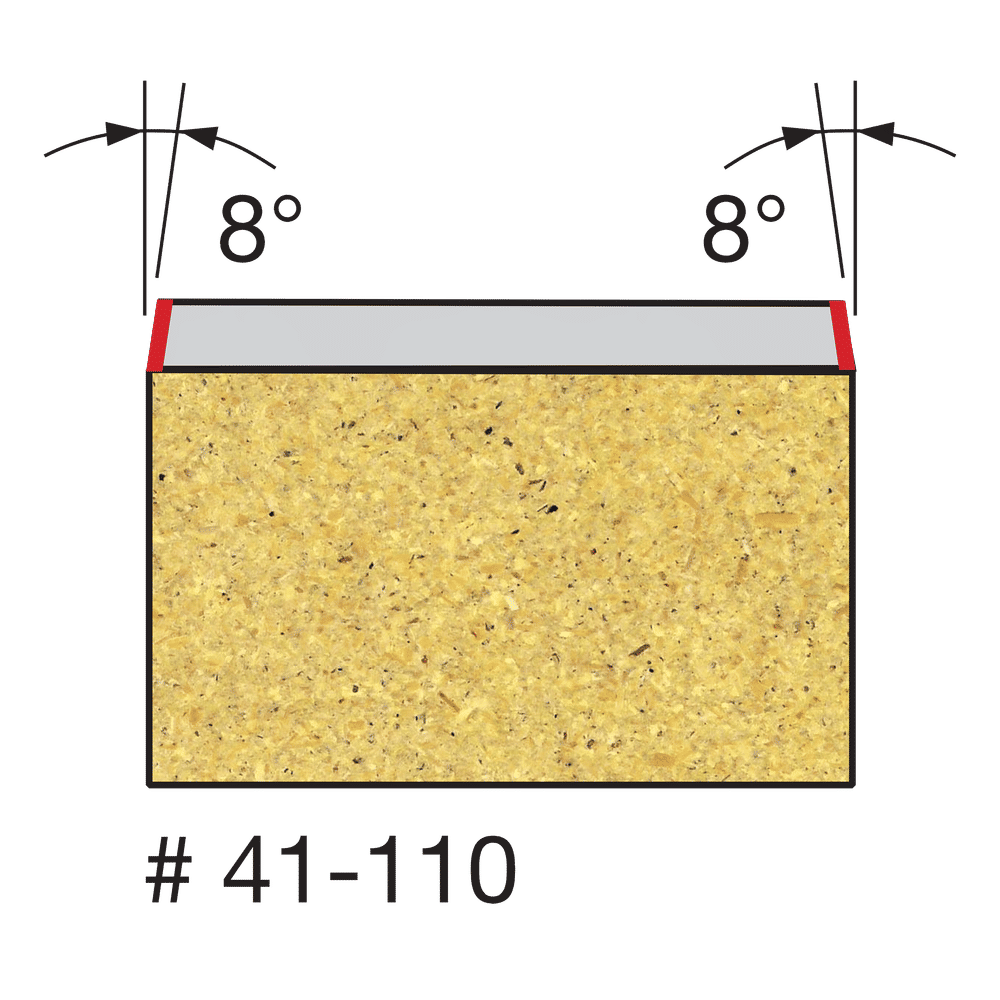

Ideal For: 8 Degree Bevel Trim on laminated materials

TECHNICAL SPECIFICATIONS
Number of Cutters 2
Max RPM 24000
Angle (d) 8°
Bearing Dia. (B) 1/2"
Carbide Height (h) 13/32"
Overall Dia. (D) 9/16"
Overall Length (H) 2"
Shank Dia. (A) 1/4"
