Freud Solid Wood Surfacing & Rabbeting Bit

Freud

Available Inventory: 2

$183.49
Unit price per

Options

Surface finishing and rabbeting with CNC Routers

Specifically designed for CNC machines to deliver long cutting life, maximum durability and high quality finish
Enhanced TiCo™ Super Density Carbide with chromium designed and manufactured by Freud for 2x cutting life
Advanced cutting geometry for superior chip evacuation and finish quality

PRODUCT OVERVIEW

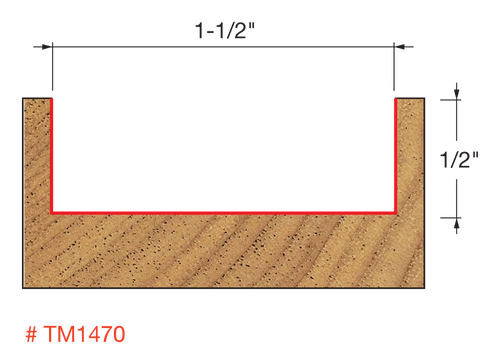

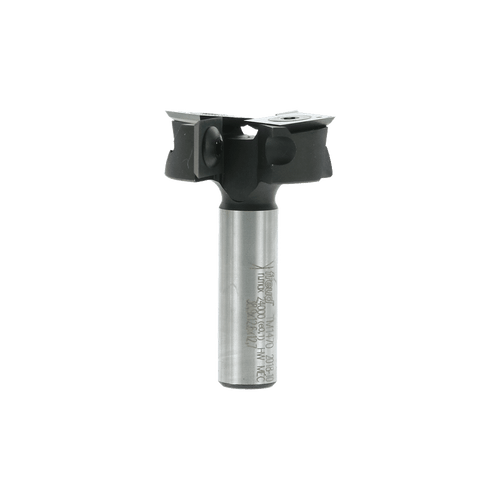

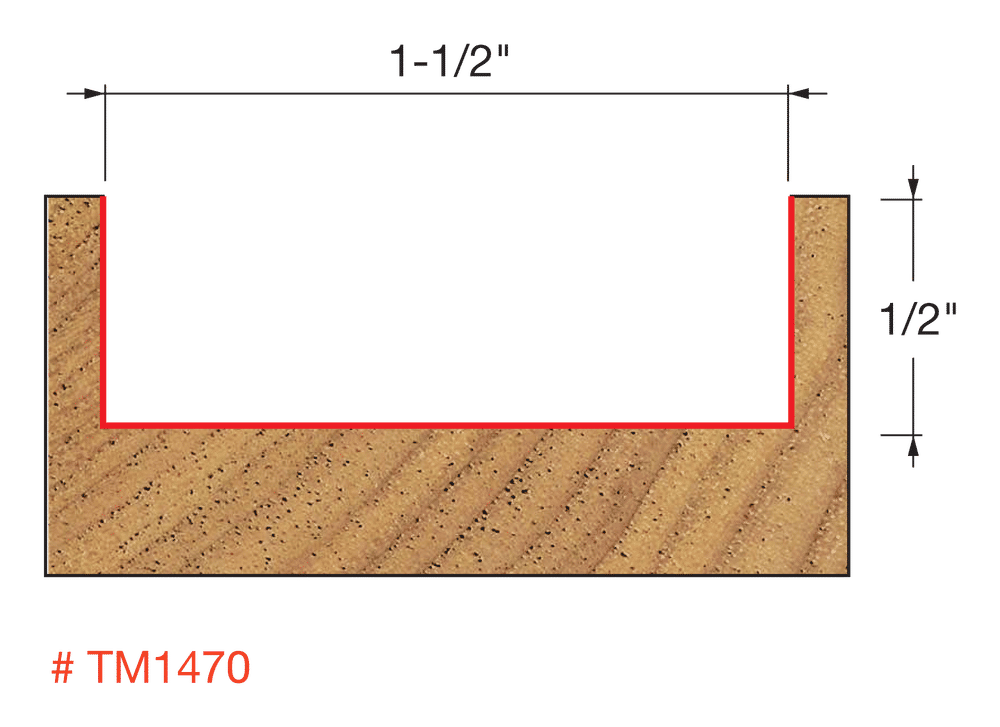

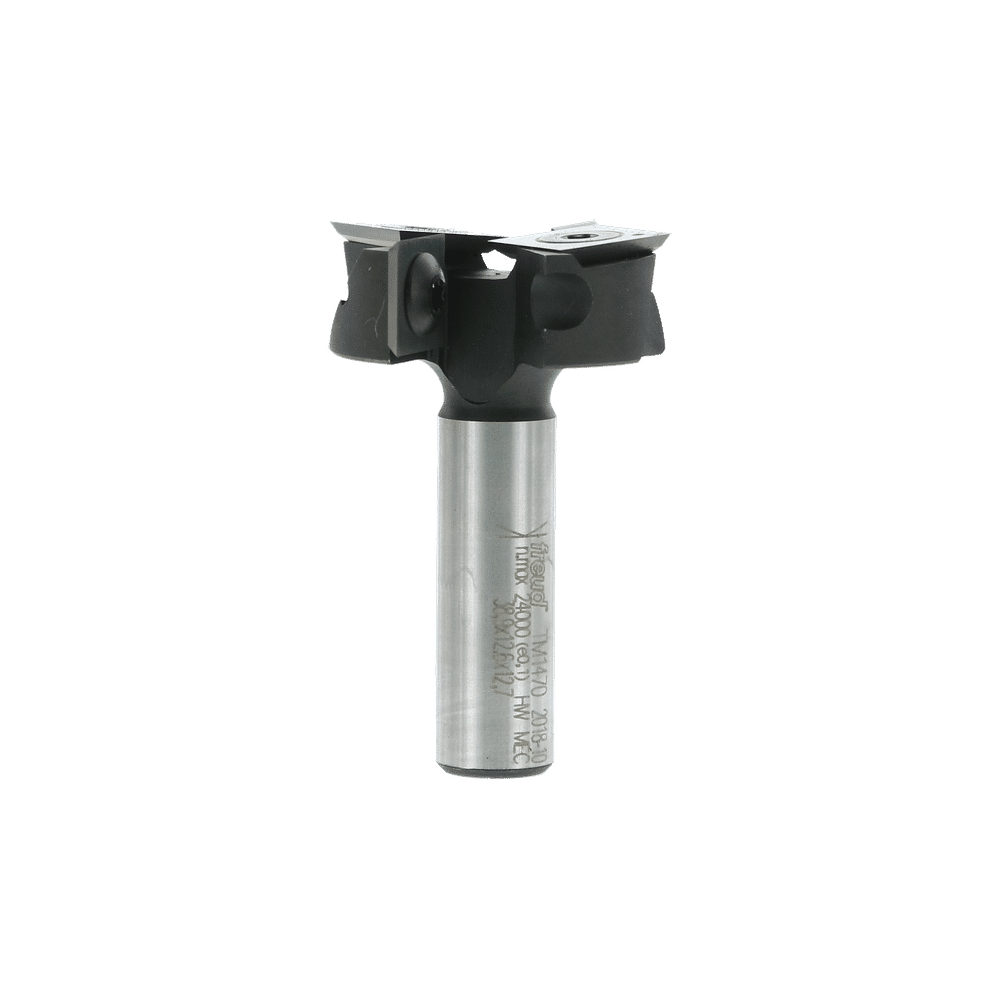

Freud's Solid Wood Surfacing & Rabbeting Bit is the ideal CNC tool for routing a fine, flat surface on solid hardwood or softwood, or for routing precise rabbets along the edge of solid wood panels. The replaceable solid carbide inserts can be rotated so all 4 edges are used, providing extremely long life, even in abrasive materials. Cutting diameter: 1-1/2", 1/2" shank.

Specifically designed for CNC machines to deliver long cutting life, maximum durability and high quality finish
Enhanced TiCo™ Super Density Carbide with chromium designed and manufactured by Freud for 2x cutting life
Advanced cutting geometry for superior chip evacuation and finish quality

Ideal For: CNC use for surfacing solid wood and rabbeting edges.

TECHNICAL SPECIFICATIONS

Number of Cutters	4
Max RPM	16000
Carbide Height (h)	1/2"
Overall Dia. (D)	1-1/2"
Overall Length (H)	2-1/4"
Shank Dia. (A)	1/2"
