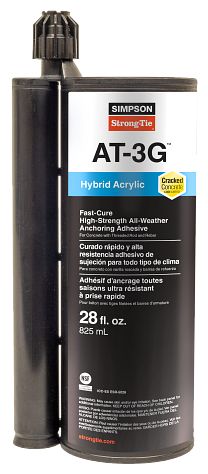

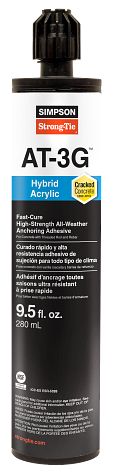

Simpson Strong Tie AT-3G™ High-Strength Hybrid Acrylic Adhesive
Simpson Strong-Tie
Available Inventory:
In Stock
Item Details
AT-3G is a hybrid, acrylic-based adhesive for anchoring threaded rod and rebar into cracked and uncracked concrete. Ideal for cold weather and wet concrete applications, AT-3G dispenses easily and offers a fast curing time for same-day bolt up. It can be specified for a wide range of in-service temperatures, and maintains its strong bond strength in extreme environments for ultimate design and jobsite flexibility. Tested and code compliant with the IBC and IRC, AT-3G hybrid adhesive is easy to install with the conventional blow-brush-blow hole cleaning method.
Key Features
- Excellent for use in cold weather conditions or applications where fast cure is required
- Recognized per ICC-ES AC308 for threaded rod and rebar anchoring, along with post-installed rebar development and splice length design provisions
- Conventional blow-brush-blow hole cleaning technique using a wire brush — no power brushing required
- Base material installation temperatures down to 0°F (-18°C)
- Use in grout-filled CMU construction
- Use of a vacuum in lieu of compressed air for hole cleaning
- Installation into oversized holes
- Installation in holes drilled with diamond core bits
| Mix Ratio/Type | 10:1 hybrid-acrylic |
| Mixed Color | Gray |
| Base Materials | Concrete — cracked and uncracked |
| Base Material Conditions | Dry, water-saturated, water-filled holes |
| Anchor Type | Threaded rod or rebar |
| Substrate Installation Temperature | 23°F (-5°C) to 104°F (40°C) |
| In-Service Temperature Range | -40°F (-40°C) to 320°F (160°C) |
| Storage Temperature | 41°F (5°C) and 77°F (25°C) |
| Shelf Life | 18 months |
| Volatile Organic Compound (VOC) | 41 g/L |
